1 Hole Chrome Kitchen Sink Water Faucet Ceramic Kitchen Tap with Pull Out Spray
Quick Detail:
- Type: Kitchen faucet
- Model Number: HN-4C21
- Feature: pull out kitchen mixer
- Material: Brass
- Valve Core Material: Ceramic
- Number of Handles: One handle
- Style: Contemporary
- Surface Treatment: Polished
- Surface Finishing: Chrome
- Faucet Mount: Single hole
- Function: for hot, cold &shower water
- Warranty: 5 years
Description:
* Single hole installation, high arc shape pull out spray head, can be pulled out for 1M, convenient cleaning table.
* Clavate quick-open handle, automatic mix cartridge .
* High purity brass main body. Water pipe can be rotated 360 °.
* supply two kinds of water(bubble water and shower water) .Ceramic cartridge,
* Quality guarantee time:5 years no leakage.
Applications:
Bathtub faucet, commercial faucet, home faucet, household faucet, industrial faucet etc.
Specifications:
| Material: | Brass main body and zinc alloy handle |
| Brass content: | 59% |
| Cartridge: | Ceramic cartridge, Hain-Yo brand |
| Surface treatment: | Chrome-plated, other plating available, including brush nickle, red bronze, antique brass, etc. |
| The thickness of plating: | 8~12um |
| Salt Spray Testing: | General plating: 24hours/Acid;120hours/neutral Acid Plating: 48hours/Acid;240hours/neutral |
| Water Pressure Testing: | 0.05-0.9MPA |
| Cartridge Life time: | 500,000 cycles |
| Quality Guarantee: | 5 years Quality Guarantee |

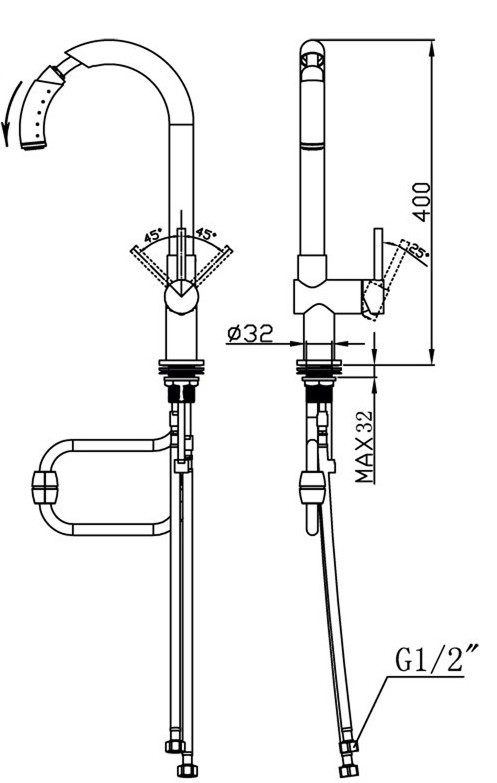

| Drawing: | Please contact us to get |
| Hardware needed for mounting: | Along with the faucet |
| A.I.: | Along with box packing |
Competitive Advantage:
- Our faucets come with 5-year warranties.
- High-quality and Eco-friendly faucets: All faucets use #59 Brass, imported ceramic cartridge, advance environmental protection electro-plated technology, more conducive to environmental protection.
- Laser LOGO on faucet’s handle, paste products label on our neutral color box, or blister packing with our brand printing or OEM brand printing, increasing the advertising effectiveness and marketing promotion.
- Individual Package: Individual package and 8 or 10 units double packed with carton.
- Easy Assembly: All hardware needed for mounting is included with faucet, assembly instruction along with every unit box.
- 100% of our products are tested before shipment.
- Simples ready in 3 to 7 days.
- Customized presentation styles and dimension: Products dimension, electroplating color, and colorbox printing pattern are all customized. We can do OEM according to customers’ design
- drawing, further more, we can also do ODM base on customers’ requirements in actual projects
- Handy products were elected to Green Environmental Protection Head Chooses A Product in 2010.
- Your one-stop supplier with sanitary wares.
Service conditions:
1)The working pressure of the products is 0.05MPa-0.9MPa
2)The temperature is no more than 85° when supply hot water.
3)Don't use vapor when supply hot water.
4)The working temperature is more than 0°
5)The suitable dimension of the sink hole is ø33mm-ø38mm

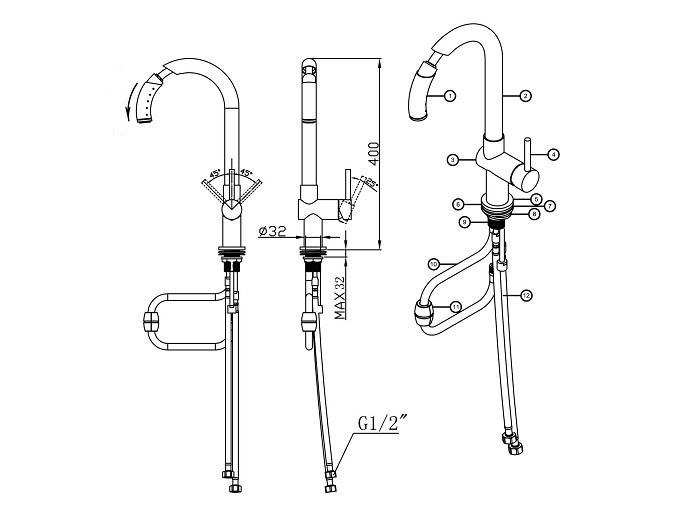

| No | Part Name | QTY | Material |
| 1 | Spray-head | 1 | Engineering plastics chrome plated |
| 2 | Elbow pipe | 1 | Brass chrome plated |
| 3 | Main body | 1 | Brass chrome plated |
| 4 | Handle | 1 | Zinc alloy chrome plated |
| 5 | Permanent Seat | 1 | Brass chrome plated |
| 6 | O-Ring | 1 | Rubber |
| 7 | Corrugated gasket | 1 | Stainless steel |
| 8 | Fixed nut | 1 | Brass electroplated |
| 9 | Base pin | 1 | Brass electroplated |
| 10 | Draw-tube | 1 | Stainless steel chrome plated |
| 11 | Shot | 1 | Rubber and lead |
| 12 | Stainless steel hose | 2 | Stainless steel |
